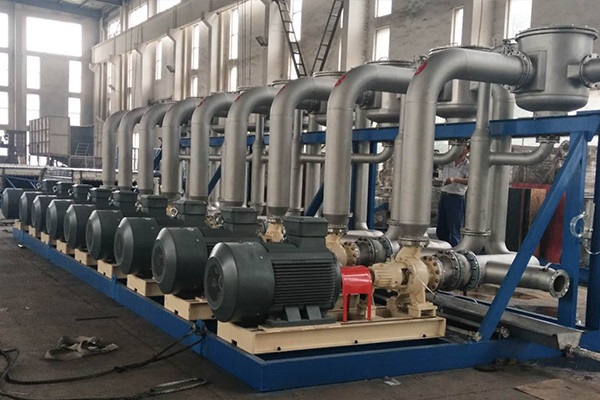

1YDX-650-II-9 Starch Washing Cyclone

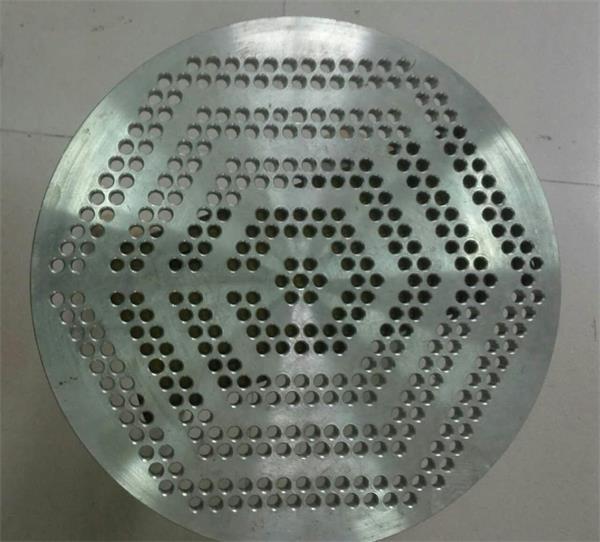

Patent tubesheet

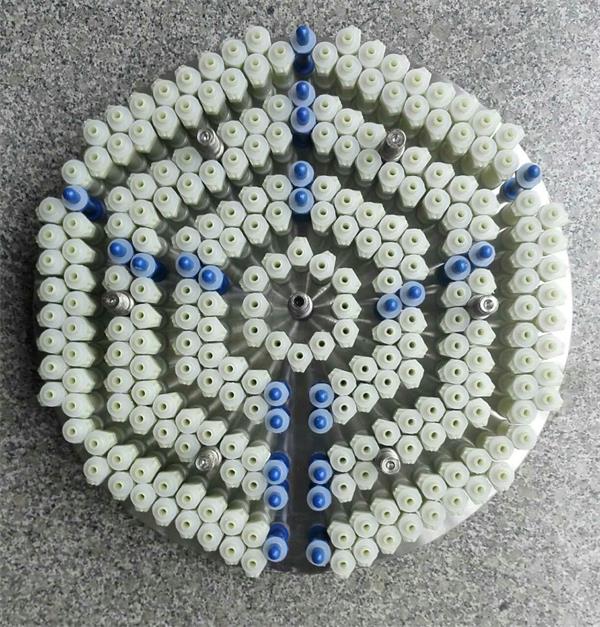

Patented Swirl Tube

New Energy-saving Washing Cyclone
I. Comprehensive description of quality and performance of technical products
The new washing cyclone group consists of 9-stage cyclone, each stage of which is mainly composed of outer cylinder, installation tube plate of cyclone tube, cyclone tube, inner material tube, end cap, inlet and outlet material tube, sealing parts, etc. The outer cylinder and cyclone tube are installed horizontally and vertically. Cyclone tube is installed on the tube board of the cyclone. The structure of the product is compact and the design is reasonable. Therefore, it is convenient to disassemble and assemble. CNC machine tool is used to process the holes on the tube board of the cyclone tube to ensure that every corresponding hole on the tube board can be coaxial and the stepped surface is parallel, thus ensuring the sealing performance. The outer cover is connected with movable knuckle bolts, which is very convenient to inspect and repair the cyclone tube, so as to ensure the correctness of the equipment. It works well.
1. Swirl tube sheet and swirl tube are patented products. Swirl tube has special positioning arrangement, smooth feeding, good treatment effect, and can save a lot of electricity at the same output. Increase production
2. Standards for the Implementation of Manufacturing, Inspection and Acceptance of Bidded Products
1. According to the General Technical Standards of Grain and Oil Processing Machinery and Jiangsu Leixin Food Machinery
Enterprise Manufacturing Standards:
