Summary

This machine is mainly used for corn starch plant after soaking maize hydraulic stone removal, so as to effectively protect the equipment after the road from damage, with large capacity, high separation efficiency, reliable operation, the advantages of small occupation of land. It is ideal equipment for corn starch factory.

Purpose, scope and characteristics

SPX series of the gravel trap cyclone used for soaking corn hydraulic sand removal. Its main role is in the corn before crushing will be mixed with stones, the hard and heavy metal impurity removal, to effectively protect the equipment after the road (such as crusher) from damage. Because the separation of the hydrocyclone method, so the high separation efficiency, large handling capacity, small ground occupation of the device.

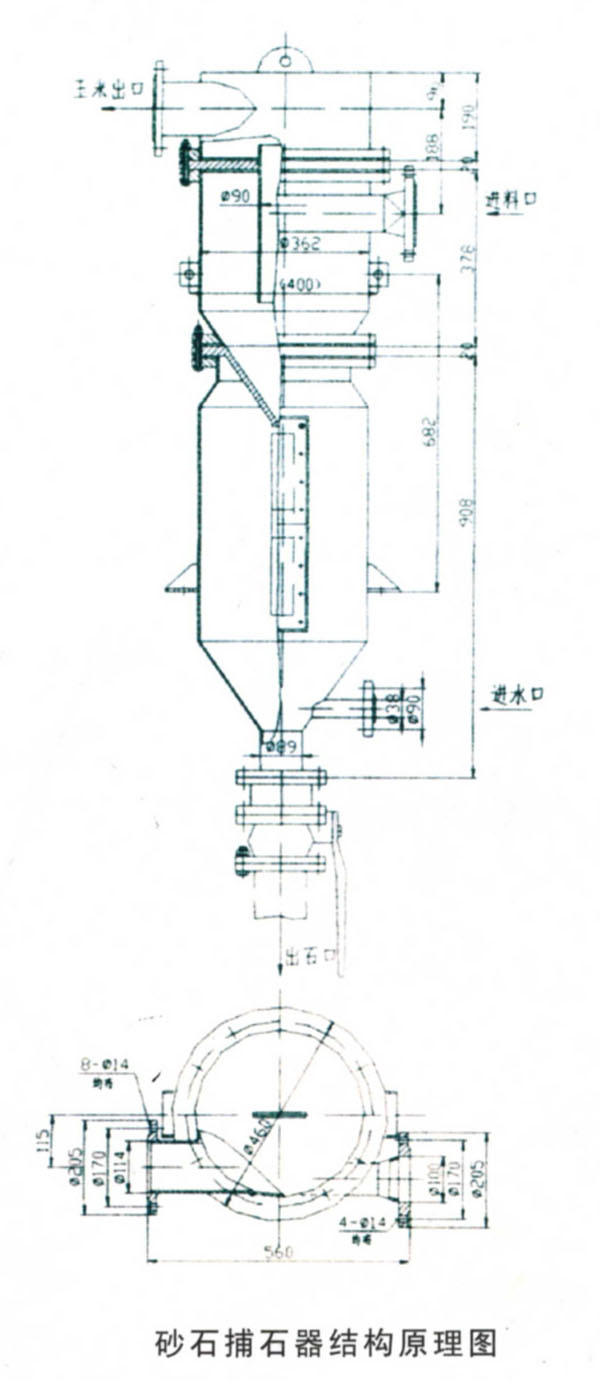

The main structure and working principle

It is mainly composed of a separation chamber and a set of Shishi. The main parts of the separation chamber for the vortex core tube and wear cone.

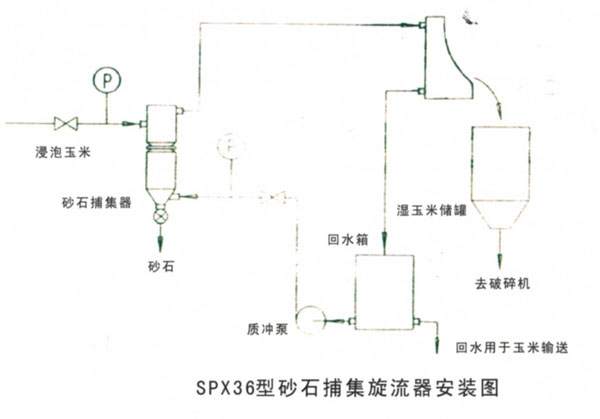

At work, corn and water mixture tangentially cylindrical part into the separation chamber, and the formation of backspin vortex. In the cone diameter gradually reduced, due to the centrifugal force, the heavy stone, metal, move to the cylinder wall, and through the cone outlet in shishi. While the liquid and maize lighter is moving toward the center, and the final reverse swirl up together, from the material outlet by the core tube, and corn are separated.

Because the bottom of the pyramid is directly discharged, so set stone room filled with water, heavy stone after stone cone into the room. In the room is arranged at the lower part of the water tangential inlet. The pressure and the pressure close to, so can withstand corn in the cone outlet, and only let the pebble. In the set is provided with a row of stone sarcophagus minimum valve, from time to time, opening the valve. Can be discharged.
